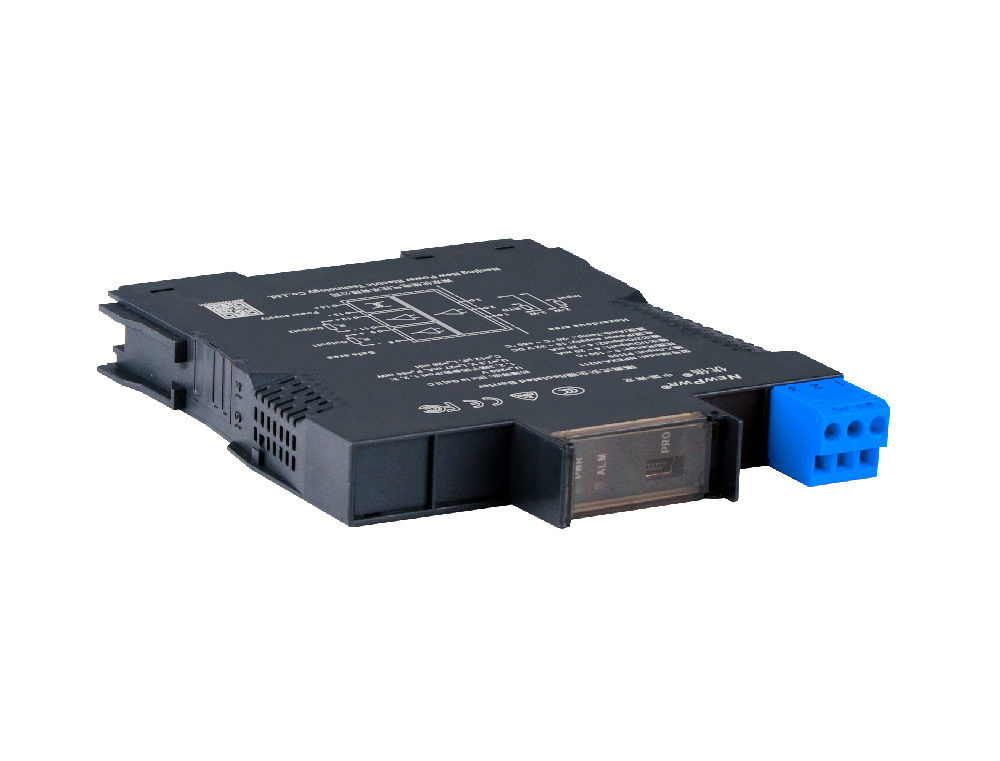

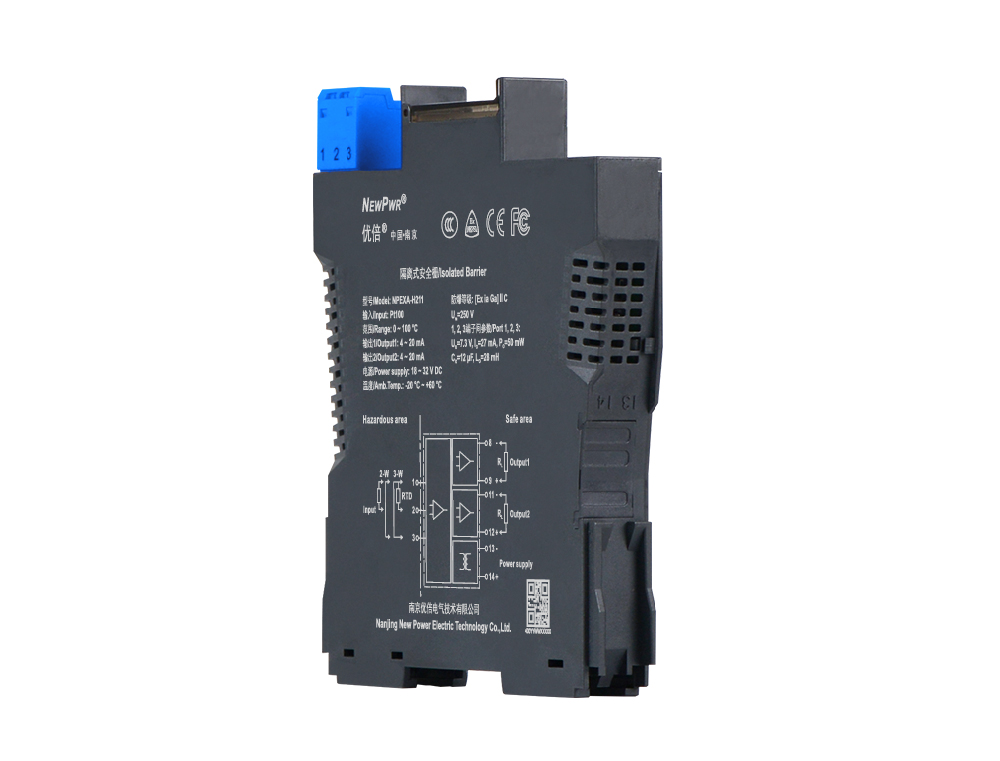

      NPEXA-H211









                Temperature input isolated barrier, it converts the thermal resistance signals from a hazardous area into 4~20mA signals to a safe area by isolation. It needs a backplane power supply. The input, output, and power supply are galvanically isolated from each other. The self-test function is also available on this device. Calibrate the apparatus or modify parameters by using a handheld programmer.










      Input signal












      Output signal












      Channels












      Power Supply Mode

















                Share


















      NPEXA-H211












      【Core technology】
      【Installation and disposal】



      Apparatus installation                            Apparatus disposal

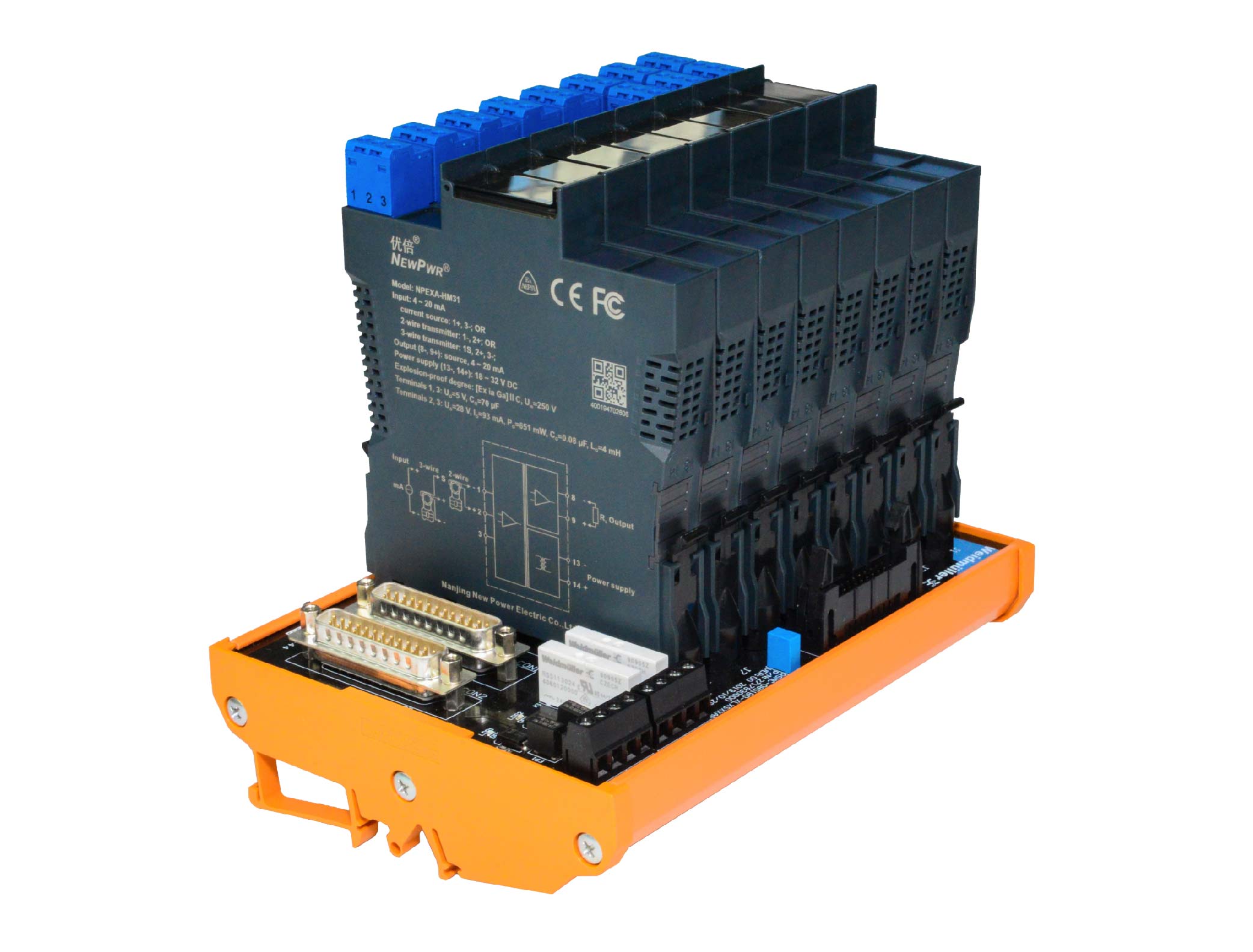

      Backplan installation                                Backplan disposal














      Supply







                          Power supply
                          18 ~ 32 V DC









      Input







                          Input signal
                          RTD





                          Line resistance
                          ≤ 20 Ω per line









      Output







                          Output signal
                          4 ~ 20 mA





                          Load resistance
                          RL ≤ 500 Ω









      Transfer characterisics







                          Pt100(385), Pt100(391)
                          -200 ℃ ~ +850 ℃/＜100 ℃，±0.1 ℃/≥100 ℃，±0.1 %F.S.





                          Cu50, Cu100 (428)
                          -180 ℃ ~ +200 ℃/＜100 ℃，±0.1 ℃/≥100 ℃，±0.1 %F.S.





                          Cu50, Cu100 (426)
                          -50 ℃ ~ +200 ℃/＜100 ℃，±0.1 ℃/≥100 ℃，±0.1 %F.S.





                          Temperature drift
                          0.01%F.S./℃









      General parameters







                          Response time
                          ≤ 1 s





                          Power dissipation
                          1.5 W









      EMC data







                          Electromagnetic compatibility
                          IEC 61326-3-1





                          Dielectric strength
                          ≥ 2500V AC (intrinsically safe side / non-intrinsically safe side); ≥ 500V AC (Power supply /non-intrinsically safe side)





                          Insulation resistance
                          ≥ 100 MΩ (Input /Output/Power supply)









      Operating conditions







                          Operation temperature
                          -20 ℃ ~ +60 ℃





                          Storage temperature
                          -40 ℃ ~ +80 ℃





                          Suitable location
                          Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ⅡA, ⅡB, ⅡC, T4 ~ T6









      State







                          Output states
                          Default following mode, it can be configured as 4mA~20mA NE43 mode or fixed output mode.









      Mechanical specifications







                          Connection method
                          Screw connection





                          Dimension
                          15.8mm (W) × 121.6mm (H) × 104.8mm (D)





                          Mounting type
                          DIN35 mm









      Certified data







                          Product approvals
                          NEPSI, CE, FCC, CCC





                          Ex marking
                          [Ex ia Ga]ⅡC





                          Um
                          250 V





                          Uo
                          7.3 V (Terminals 1, 2, 3)





                          Io
                          27 mA (Terminals 1, 2, 3)





                          Po
                          50 mW (Terminals 1, 2, 3)





                          Co
                          12 μF (Terminals 1, 2, 3)





                          Lo
                          28 mH (Terminals 1, 2, 3)
